Application
This parametric combination spanner is intended for mechanical assembly and maintenance work where hexagonal nuts and bolts must be tightened or loosened reliably. It is suitable for industrial, automotive, and workshop applications, with a model structure that can adapt across multiple bolt sizes.
- Supports multiple bolt sizes through parameter-driven modeling.
- Suitable for industrial, automotive, and workshop use cases.
- Built for mechanical assembly and maintenance tasks.
Purpose of Design

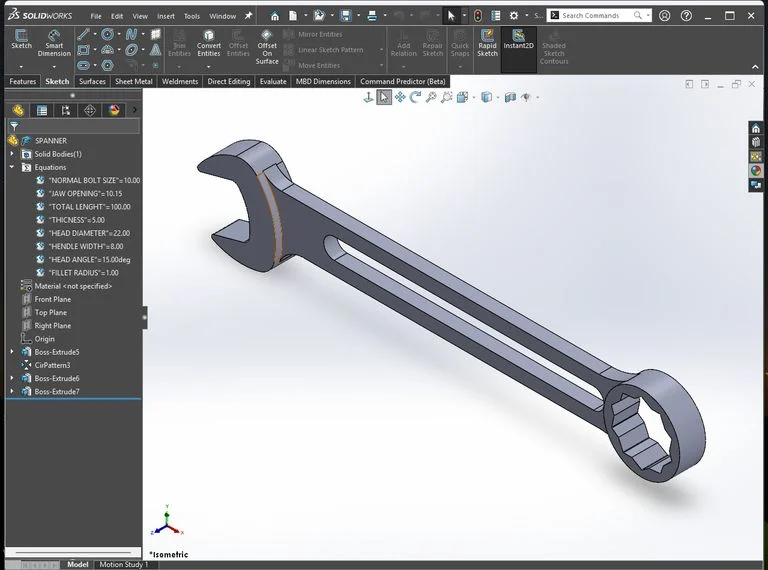

The primary goal of this project is to demonstrate advanced parametric modeling capabilities in SolidWorks. The spanner is controlled through key variables so any dimensional change updates the entire model automatically while maintaining proportion and design intent.

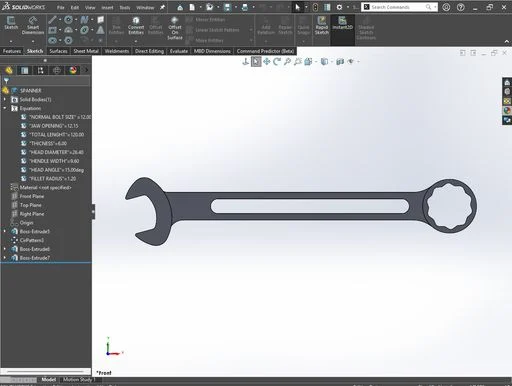

- Key parameters include bolt size, jaw opening, head diameter, overall length, and thickness.
- Any parameter change automatically updates the full model.
- The model preserves design intent and proportion across variations.
